Military Vehicles
Welcron provides comprehensive vehicle protection solutions, from military armored vehicles to customized protection kits for civilian vehicles.
Comprehensive Vehicle Protection
Integrated Vehicle Armor Solution
-
Advanced Mine Blast Structural Analysis & Modeling Capabilities
STANAG 4569 Mine Protection Levels 2–4
- Expertise from fuselage specialists and PhD-level professionals, performing structural modeling and analysis for mine blast loads, and supporting actual testing
Mine protection solution
Mine Blast Protection Solution

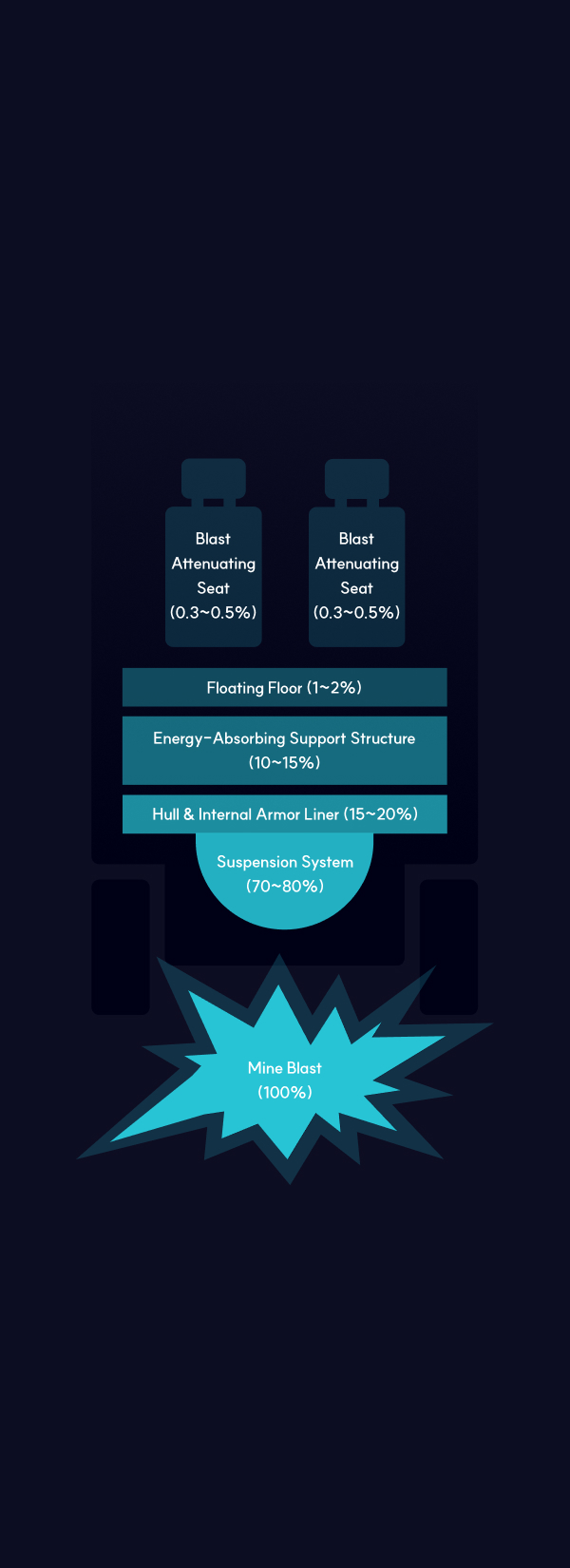

Mine Blast Energy Mitigation Mechanism & Protection Solution
Blast Attenuating Seat (Reduces Impact from 1–2% → 0.3–0.5%)
- The seat damper reduces the peak acceleration generated during a blast.
- High peak impact is converted into lower, longer-duration acceleration, significantly reducing injury to occupants.
Floating Floor (Reduces Impact from 10~15% → 1~2%)
- The floating floor is structurally isolated from the primary hull.
- Separation from the vehicle floor allows the structure to absorb blast energy in a spring-like manner.
- The flexible structure minimizes vibration and improves occupant survivability.
Energy-Absorbing Support Structure (Reduces Impact from 15~20% → 10~15%)
- Suppresses localized deformation while distributing blast loads.
- Absorbs blast energy through controlled secondary structural deformation.
- Disperses stress waves generated at the hull floor through multiple load paths.
Hull Floor / Internal Hull Liner (Reduces Impact from 70~80% → 15~20%)
- Designed to undergo controlled large deformation, allowing substantial blast energy absorption.
- Significant energy reduction is achieved through high mass, optimized thickness, and controlled plastic deformation.
- Maximizes blast mitigation while maintaining structural integrity.
Suspension System (Reduces Impact from 100% → 70–80%)
- Converts blast energy into suspension movement.
- Distributes shock loads through the arm, axle, and suspension system.
- Functions as a dynamic filter to reduce blast energy transmitted to the vehicle.
Mine Blast (100%)
Customer-Tailored Protection Kit
Customized Protection Kit
Modular Mine Blast & Vehicle Reinforcement System (Standard / Optional)
Modular protection solutions for underbody blast protection, structural reinforcement, spall mitigation, and personal protection.
STANDARD
UNIT 1 Mine Blast Protection
- Blast-resistant underbody protection structure and mounting brackets
- Installed on the exterior or interior of the vehicle underbody
OPTIONAL
UNIT 2 Hull Reinforcement
- Large-deformation energy-absorbing structure
- Installed beneath the vehicle hull
OPTIONAL
UNIT 3 Floating Floor
- Floating floor system designed to improve occupant comfort and survivability
- Installed on the interior floor
OPTIONAL
UNIT 4 Blast Attenuating Seat
- Blast-mitigating seat designed to improve occupant protection and ride comfort
- Installed inside the vehicle
STANDARD
UNIT 5 Add-on Armor
- Add-on armor panels for ballistic and blast protection
- Installed on the exterior of the vehicle hull
OPTIONAL
UNIT 6 Spall Liner
- Interior spall liner for secondary fragment protection
- Recommended for ballistic spall protection at STANAG 4569 Level 4 and above
- Installed inside the vehicle hull
OPTIONAL
UNIT 7 Engine Grille Cover
- Protection for engine air intake and exhaust openings
OPTIONAL
UNIT 8 Prototype Structure & Assembly
- Design and fabrication of blast-test prototype structures
- Structural assembly support
- Integrated mine blast protection kit solutions
OPTIONAL
UNIT 9 Personal Protective Equipment (PPE)
- Ballistic helmet, body armor, and ballistic plates
- Personal protection equipment for vehicle crew members
Performance
References
| Category | TIGON Mine Blast Protection Kit | Armored Vehicle Add-on Armor | |
|---|---|---|---|
| Product Image |
|
|
|
| Applicable Platform | Hanwha Aerospace / TIGON C2 | Hyundai Rotem / K808 | Hyundai Rotem / K870, K877 |
| Category | Engine grille louvers | ||
| Product Image |
|
|
|
| Applicable Platform | Hanwha Aerospace / K9, K10 | Hanwha Aerospace / K21 | Hyundai Rotem / K870, K877 |
| Category | Shelter Add-on Armor | ||
| Product Image |
|
||
| Applicable Platform | Hanwha Aerospace/ Command and Control Shelter | ||
